優勝UG后處理修改出刀補教程

2016-11-28  by:CAE仿真在線  來源:互聯網

問:廠里主要加工零件,后處理要帶刀補,請問要怎么改啊?

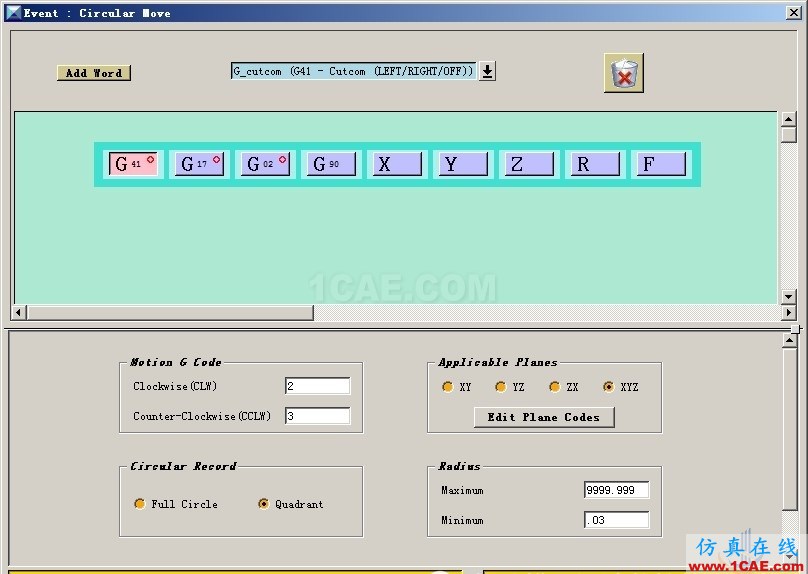

答:一、后處理構造器直線和圓弧切削加直徑補償指令;

二、修改FORMAT Feed_MMPM "&__5.0_" 為5.1,F可以輸入小數,三菱機攻牙F為牙距;
################ FORMAT DECLARATIONS #################
FORMAT AbsCoord "&__5.3_"
FORMAT Coordinate "&__5.3_"
FORMAT Digit_2 "&_02_00"
FORMAT Digit_4 "&_04_00"
FORMAT Digit_5 "&__5_00"
FORMAT Dwell_SECONDS "&__5.3_"
FORMAT EventNum "&+03_00"
FORMAT Feed "&__7.3_"
FORMAT Feed_DPM "&__5.2_"
FORMAT Feed_FRN "&__5.3_"
FORMAT Feed_INV "&__5.3_"
FORMAT Feed_IPM "&__4.1_"
FORMAT Feed_IPR "&__1.4_"
FORMAT Feed_MMPM "&__5.1_"
FORMAT Feed_MMPR "&__2.3_"
FORMAT Hcode "&_02_00"
FORMAT Rev "&__4_00"
FORMAT Rotary "&__5.3_"
FORMAT String "%s"
FORMAT Tcode "&_02_00"
FORMAT Zero_int "&_01_0_"
FORMAT Zero_real "&_01.10"

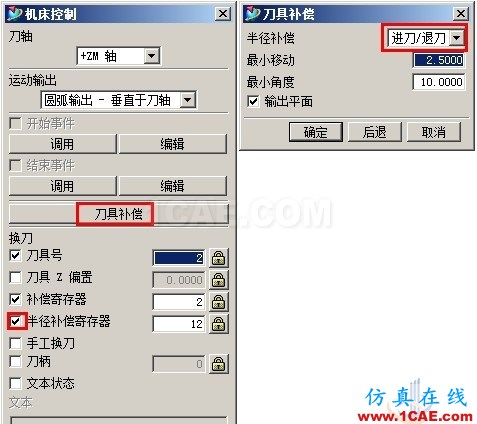

三、UG4.0 PLANER MILL-機床 機床控制如下設置;

四、后處理NC如下:
%
G40 G17 G49 G54 G80
G91 G28 Z0.0
( D10R ---> D=10.00 R=0.00 )
T02 M06
S12000 M03
G00 G90 X5.566 Y-29.562 M08
G43 Z9.1 H02
Z3.
Z-4.5
G17 G01 Z-7.5 F100.0
G41 X6. Y-27.1 D10
G03 X0.0 Y-21.1 R6.
G01 X-15. F.70
G02 X-21.1 Y-15. R6.1
G01 Y15.
.
.
G02 X19.606 Y-16.606 R5.1
G01 X16.606 Y-19.606
G02 X13. Y-21.1
G01 X0.0
G03 X-6. Y-27.1 R6.
G40
G01 X-5.566 Y-29.562
Z9.1
M09
M05
G91 G28 Z0.0
M30
%
